Assistance System

UDECOM

UDECOM is a microprocessor-based system for transmitting voice and data via an FTP interconnection bus. Data transmission is achieved through digitally coded tones. The room-level secondary units allow for the integration of all necessary patient care elements: call buttons, reassurance indicator, call cancellation button, call signal indicator in the hallway, call memory circuit, etc.

Typical installation
System diagram

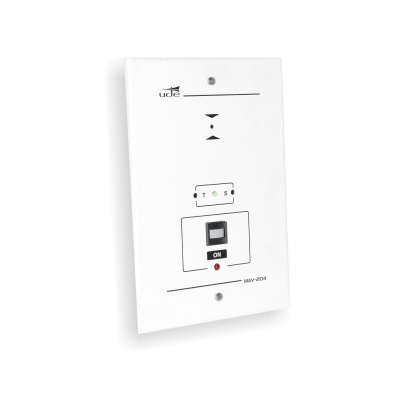

MAV-204

Activate open voice calls

UW-70

Background for embedding (hollow partition)

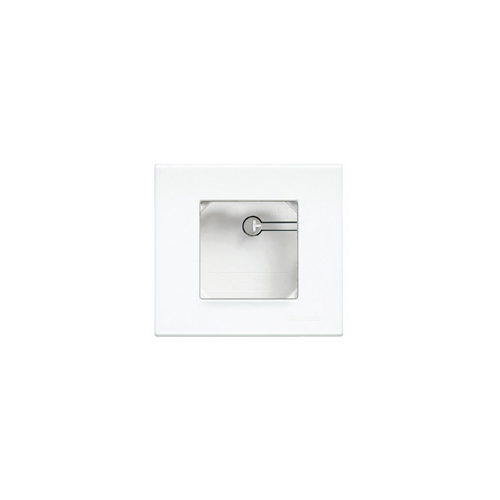

UW-84

Surface background

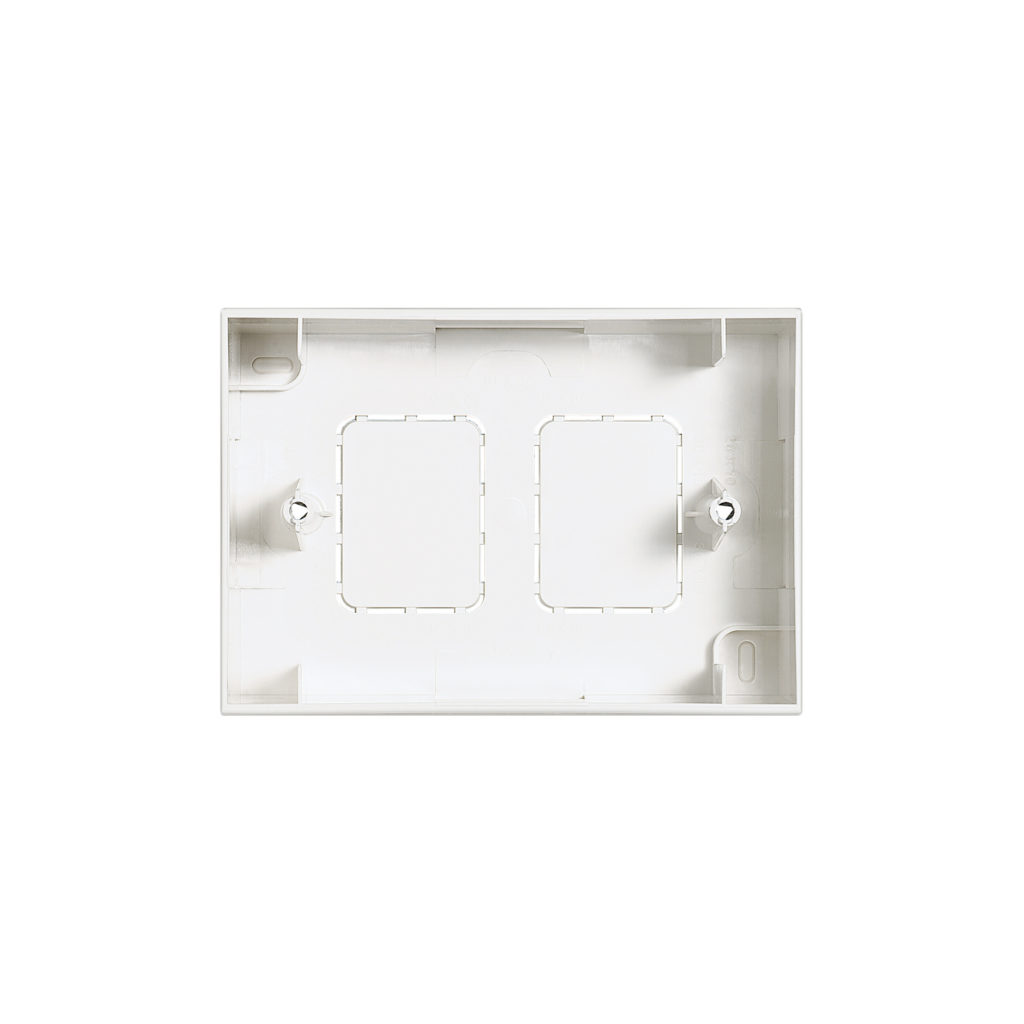

UW-82

Surface background

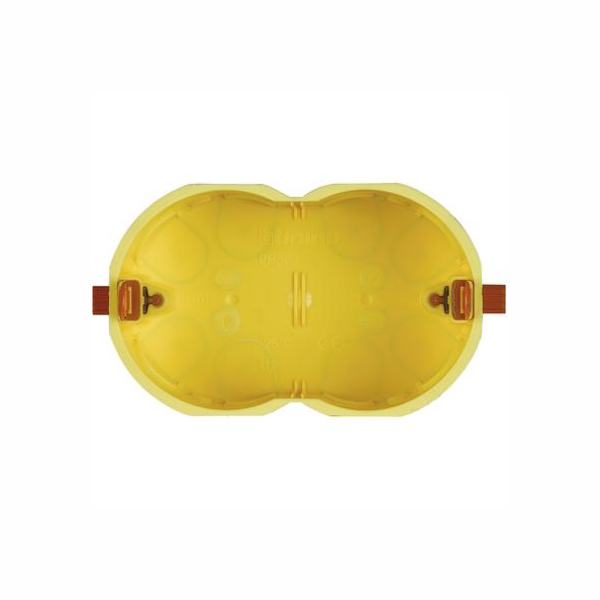

UW-72

Background for embedding (hollow partition)

UW-94

Background for embedding (solid partition)

UW-92

Background for embedding (solid partition)

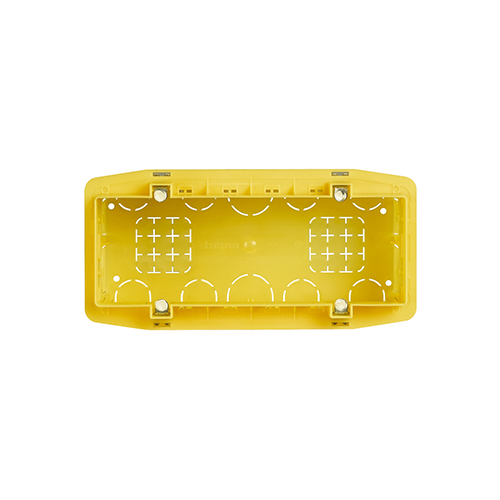

UW-90

Background for embedding (solid partition)

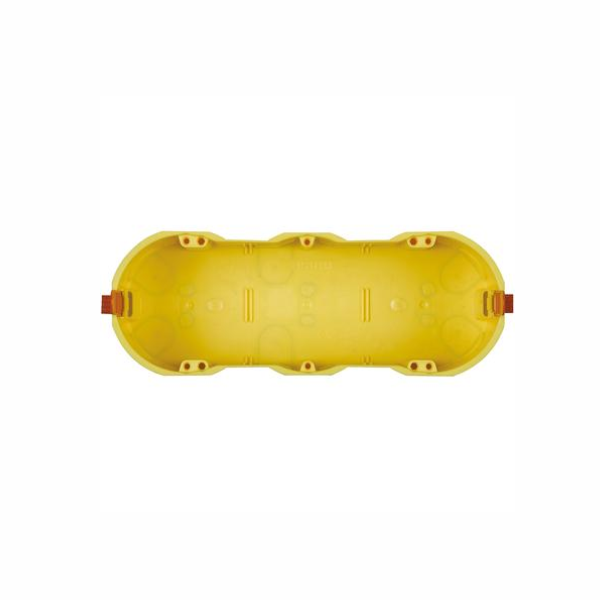

UW-74

Background for embedding (hollow partition)

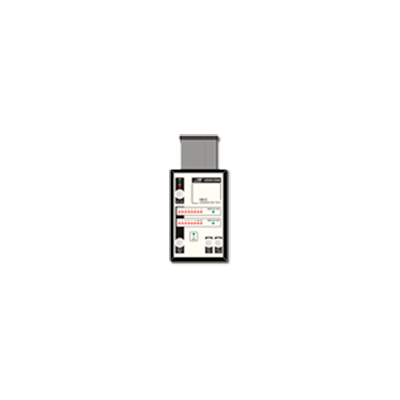

UW-G

Test Generator
